Developing for Interapplication Communication

With IAC, an external application can control Acrobat or Acrobat Reader. For example, you can write an application that launches Acrobat, opens a specific file, and sets the page location and zoom factor. You can also manipulate PDF files by, for example, deleting pages or adding annotations and bookmarks. Communication between your application and the Acrobat or Acrobat Reader application occurs through objects and events.

About the API object layers

You can think of the Acrobat API as having two distinct layers that use IAC objects:

  • The Acrobat application (AV) layer. The AV layer en3bles you to control how the document is viewed. For example, the view of a document object resides in the layer associated with Acrobat.

  • The portable document (PD) layer. The PD layer provides access to the information within a document, such as a page. From the PD layer you can perform basic manipulations of PDF documents, such as deleting, moving, or replacing pages, as well as changing annotation attributes. You can also print PDF pages, select text, access manipulated text, and create or delete thumbnails.

You can control the application’s user interface and the appearance of its window by either using its PD layer object, PDPage, or by using its AV layer object, AVDoc. The PDPage object has a method called Draw that exposes the rendering capabilities of Acrobat. If you need finer control, you can create your application with the AVDoc object, which has a function called OpenInWindow that can display text annotations and active links in your application’s window.

You can also treat a PDF document as an ActiveX? document and implement convenient PDF browser controls through the AcroPDF object. This object provides you with the ability to load a file, move to various pages within a file, and specify various display and print options. A detailed description of its usage is provided in Summary of OLE objects and methods.

Object reference syntax

The Acrobat core API exposes most of its architecture in C, although it is written to simulate an object-oriented system with nearly fifty objects. The IAC interface for OLE automation and Apple events exposes a smaller number of objects. These objects closely map to those in the Acrobat API and can be accessed through various programming languages.

DDE does not organize IAC capabilities around objects, but instead uses DDE messages to Acrobat.

OLE automation, Apple events, and AppleScript each refer to the objects with a different syntax.

  • In OLE, you use the object name in either a Visual Basic or Visual C# CreateObject statement or in an MFC CreateDispatch statement.

  • In Apple events, you use the name of the object in a CreateObjSpecifier statement.

  • In AppleScript, you use the object name in a set ... to statement.

Objects in the Acrobat application layer

This table describes the IAC objects in the Acrobat application (AV) layer. The first three objects are the primary source for controlling the user interface.

Object

Description

OLE automation class name

Apple event class name

AVApp

Controls the appearance of Acrobat. This is the top-level object, representing Acrobat. You can control the appearance of Acrobat, determine whether an Acrobat window appears, and set the size of the application window. Your application has access to the menu bar and the toolbar through this object.

AcroExch.App

Application

AVDoc

Represents a window containing an open PDF file. Your application can use this object to cause Acrobat to render into a window so that it closely resembles the Acrobat window. You can also use this object to select text, find text, or print pages. This object has several bridge methods to access other objects. For more information on bridge methods, see Summary of OLE objects and methods.

AcroExch.AVDoc

Document

AVPageView

Controls the contents of the AVDoc window. Your application can scroll, magnify, or go to the next, previous, or any arbitrary page. This object also holds the history stack.

AcroExch.AVPageView

PDF Window

AVMenu

Represents a menu in Acrobat. You can count or remove menus. Each menu has a language-independent name used to access it.

None `

Menu``

AVMenuItem

Represents a single item in a menu. You can execute or remove menu items. Every menu item has a language-independent name used to access it.

None

Menu item

AVConversion

Represents the format in which to save the document.

None

conversion

Objects in the portable document layer

This table describes the IAC objects in the portable document (PD) layer.

Object

Description

OLE automation class name

Apple event class name

PDDoc

For OLE automation, the first page of a document is page 0. For Apple events, the first page is page 1.

AcroExch.PDDoc

Document

PDPage

Represents one page of a PDDoc object. You can use this object to render Acrobat to your application’s window. You can also access page size and rotation, set up text regions, and create and access annotations. ` For OLE automation, the first page of a document is page 0. For Apple events, the first page is page 1.

AcroExch.PDPage

page``

PDAnnot

Manipulates link and text annotations. You can set and query the physical attributes of an annotation and you can perform a link annotation with this object. Apple events have two additional, related objects: PDTextAnnot, a text annotation, and PDLinkAnnot, a link annotation.

AcroExch.PDAnnot

annotation

PDBookmark

Represents bookmarks in the PDF document. You cannot directly create a bookmark, but if you know a bookmark’s title, you can change its title or delete it.

AcroExch.PDBookmark

bookmark

PDTextSelect

Causes text to appear selected. If selected text exists within an AVDoc object, your application can also access the words in that region through this object.

AcroExch.PDTextSelect

None

Plugins for extending the IAC interfaces

You can extend the functionality of the IAC interfaces by writing Plugins that use core API objects that are not already part of the IAC support system. The following graphic shows the software architecture needed to establish a connection. The plug-in calls methods through host function tables (HFTs).

Using Plugins for interapplication communication

_images/iacplugin.png

Similarly, the JSObject interface provides you with convenient access to the Acrobat features made available through JavaScript. Take advantage of this interface wherever possible. Its usage is explained in Using the JSObject interface.

Tip

Your plugins should make use of a broker to work correctly when protected mode is enabled.

Developing for Acrobat Reader

On Windows, the only OLE automation supported for Reader is the PDF browser controls interface, which enables you to treat a PDF document as an ActiveX document within an external application. This makes it possible to load a file, move to various pages within the file, highlight a text selection, and specify various print and display options, as shown below.

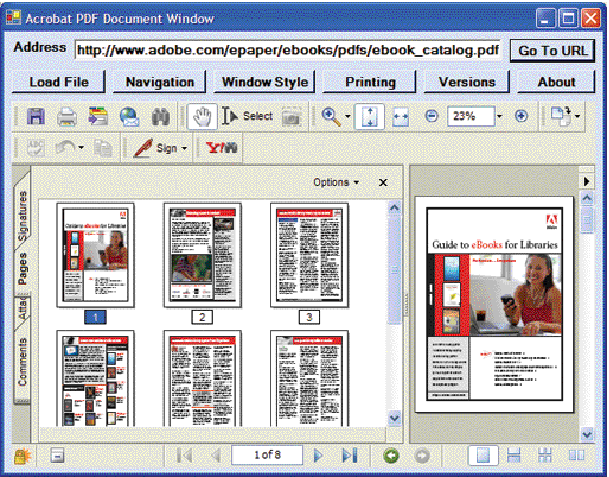

PDF browser controls

_images/browsercontrols.png

PDF browser controls are available through the AxAcroPDFLib.AxAcroPDF interface, which provides the following methods used to programmatically control the PDF document window:

  • GoBackwardStack

  • GoForwardStack

  • GotoFirstPage

  • GotoLastPage

  • GotoNextPage

  • GotoPreviousPage

  • LoadFile

  • Print

  • PrintAll

  • PrintAllFit

  • PrintPages

  • PrintPagesFit

  • PrintWithDialog

  • SetCurrentHighlight

  • SetCurrentPage

  • SetLayoutMode

  • SetNamedDest

  • SetPageMode

  • SetShowScrollbars

  • SetShowToolbar

  • SetView

  • SetViewRect

  • SetViewScroll

  • SetZoom

  • SetZoomScroll

DDE messages

Adobe Reader supports the following DDE messages:

  • AppExit

  • CloseAllDocs

  • DocClose

  • DocGoTo

  • DocGoToNameDest

  • DocOpen

  • FileOpen

  • FileOpenEx

  • FilePrint

  • FilePrintEx

  • FilePrintSilent

  • FilePrintSilentEx

  • FilePrintTo

  • FilePrintToEx

Apple events

On Mac OS, you may use Apple events and AppleScript. Adobe Reader supports only the following required Apple events:

  • open

  • print

  • quit

  • run
