Line (S2)

The Line component in the S2 package supports all the props from the base Line component plus several S2-exclusive features: gradients, interpolation, inline direct labels, and Spectrum 2 styled point display.

import { Chart, Axis, Line, Legend } from '@spectrum-charts/react-spectrum-charts-s2';

---

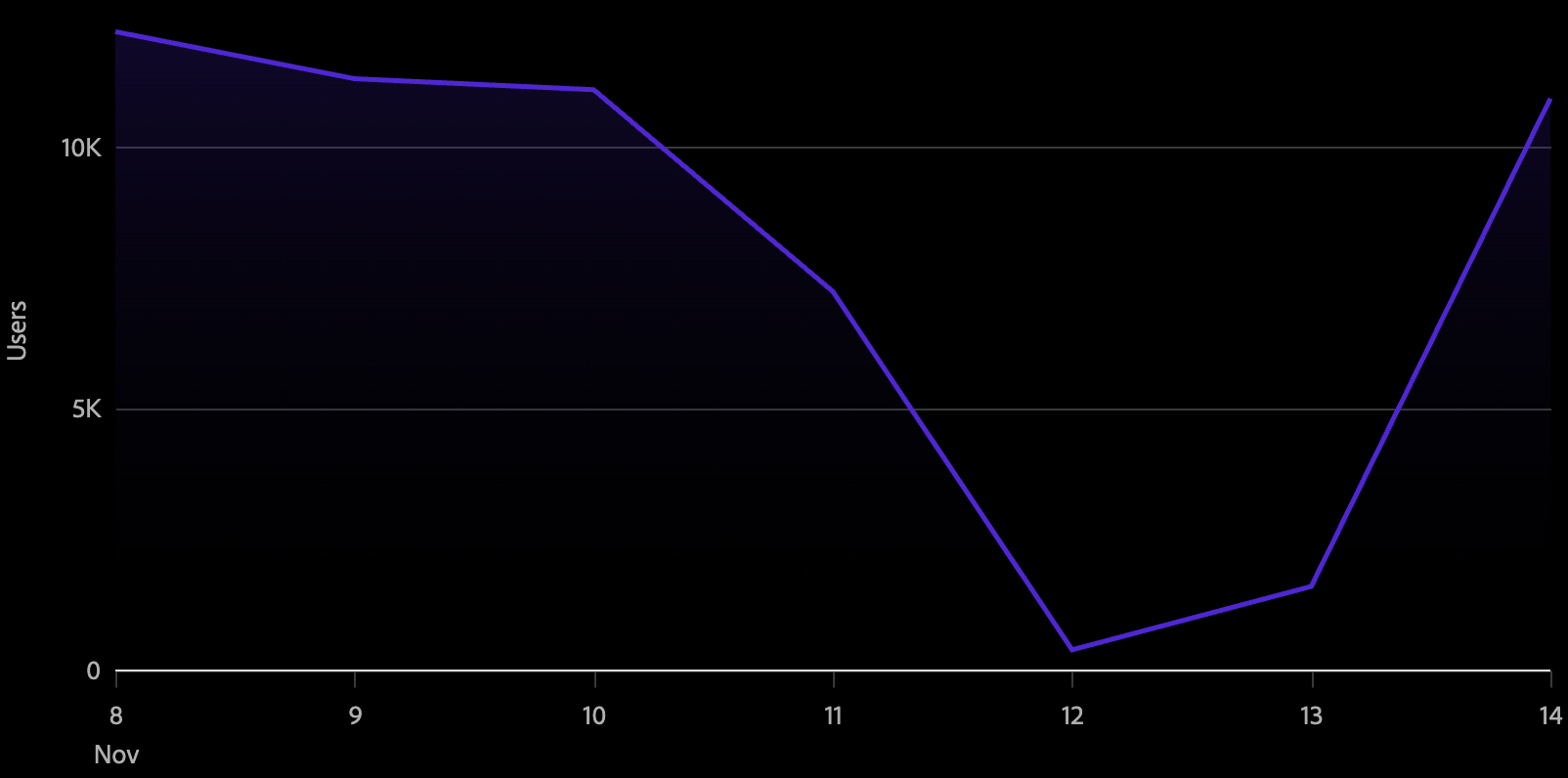

Line gradient

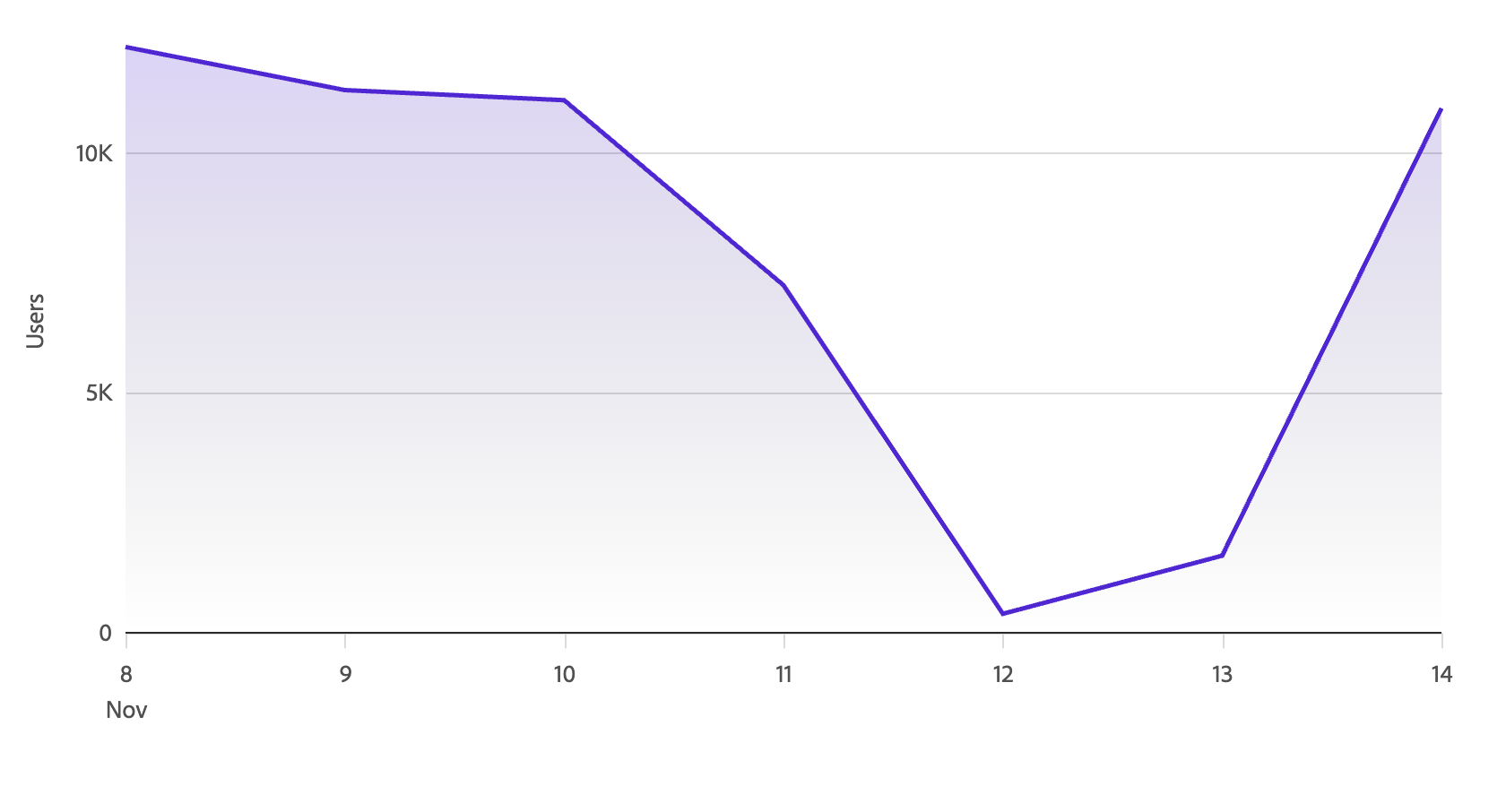

Setting gradient to true renders a filled area beneath the line that fades from the line color to transparent. This works well for emphasizing trends on single-series or lightly multi-series charts.

<Chart data={data}>
  <Axis position="bottom" labelFormat="time" ticks baseline />
  <Axis position="left" grid />
  <Line color="series" gradient />
</Chart>

---

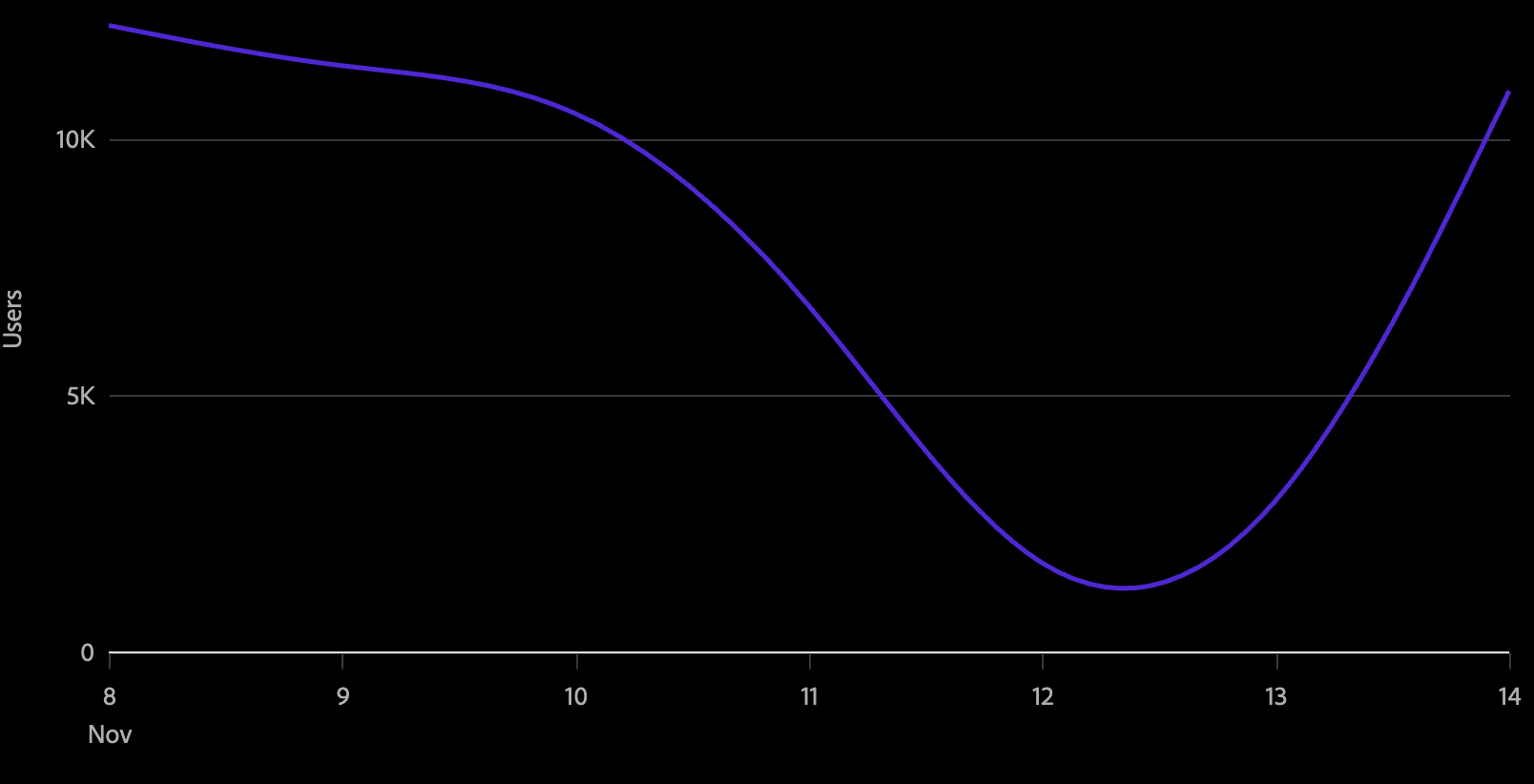

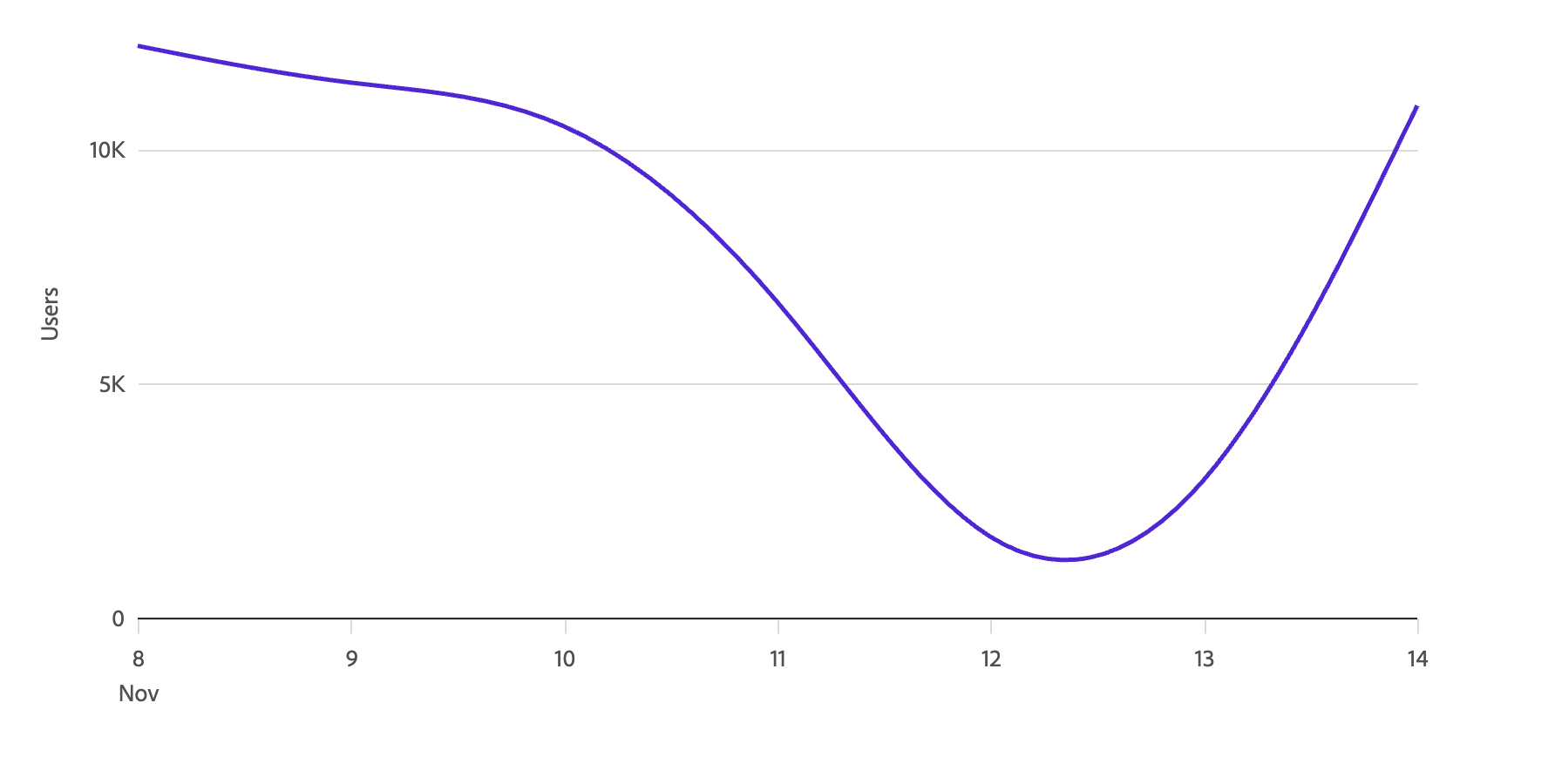

Line interpolation

The interpolate prop controls the curve algorithm used to draw the line between data points.

<Chart data={data}>
  <Axis position="bottom" labelFormat="time" ticks baseline />
  <Axis position="left" grid />
  <Line color="series" interpolate="monotone" />
</Chart>

Available interpolation methods:

Value	Description
'linear'	Straight segments between points (default Vega behavior)
'monotone'	Smooth curve that preserves monotonicity — recommended for most time-series data
'basis'	B-spline curve
'cardinal'	Cardinal spline
'catmull-rom'	Catmull-Rom spline
'natural'	Natural cubic spline
'step'	Horizontal then vertical steps, centered on the data point
'step-before'	Vertical then horizontal steps
'step-after'	Horizontal then vertical steps

---

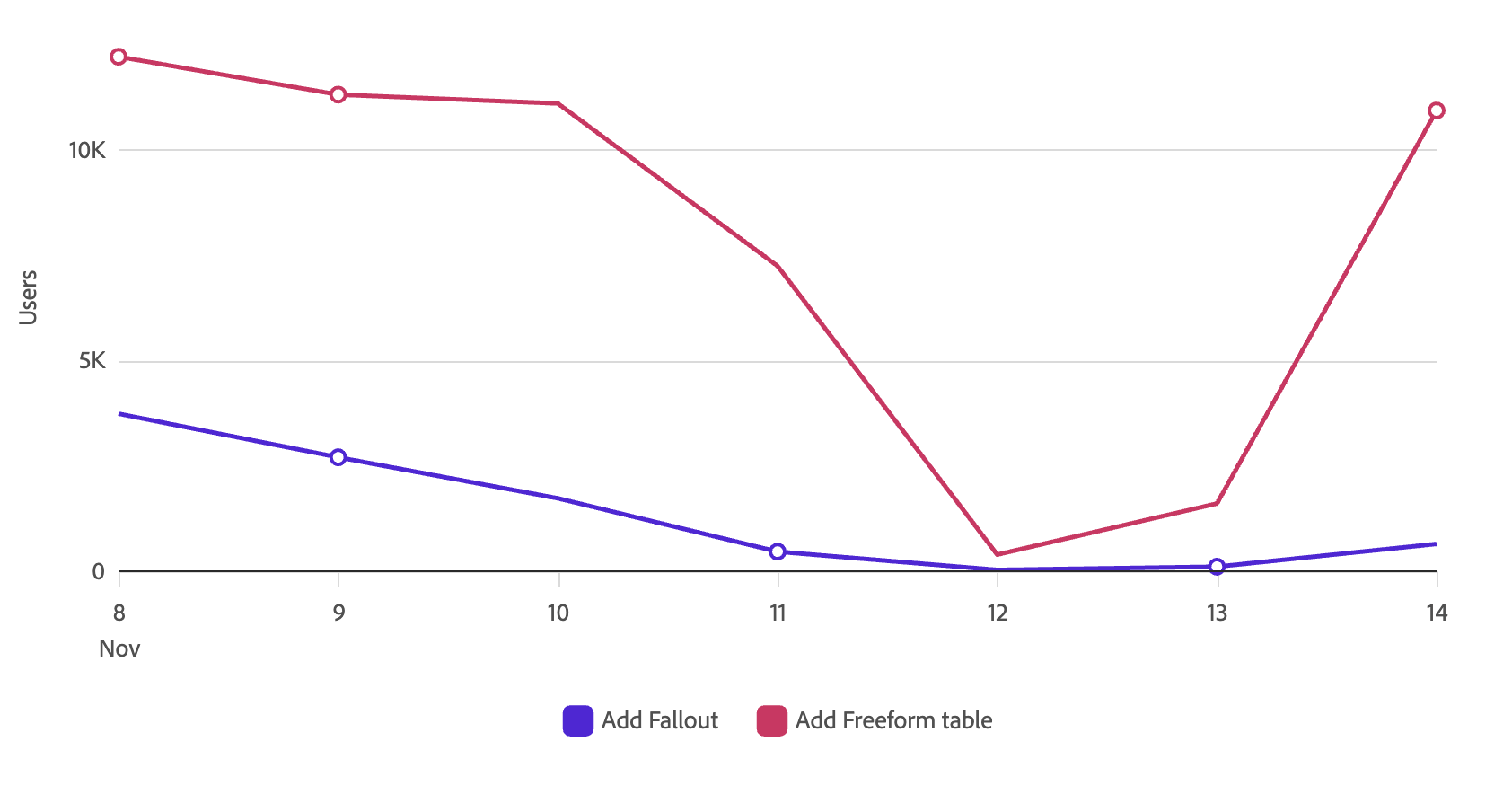

Line point styles

In the S2 package, visible points on a line are styled automatically using Spectrum 2 design tokens — including color, stroke, and size — when they are displayed. Points are shown in two cases:

1. On hover — a point appears at the hovered location on the line.

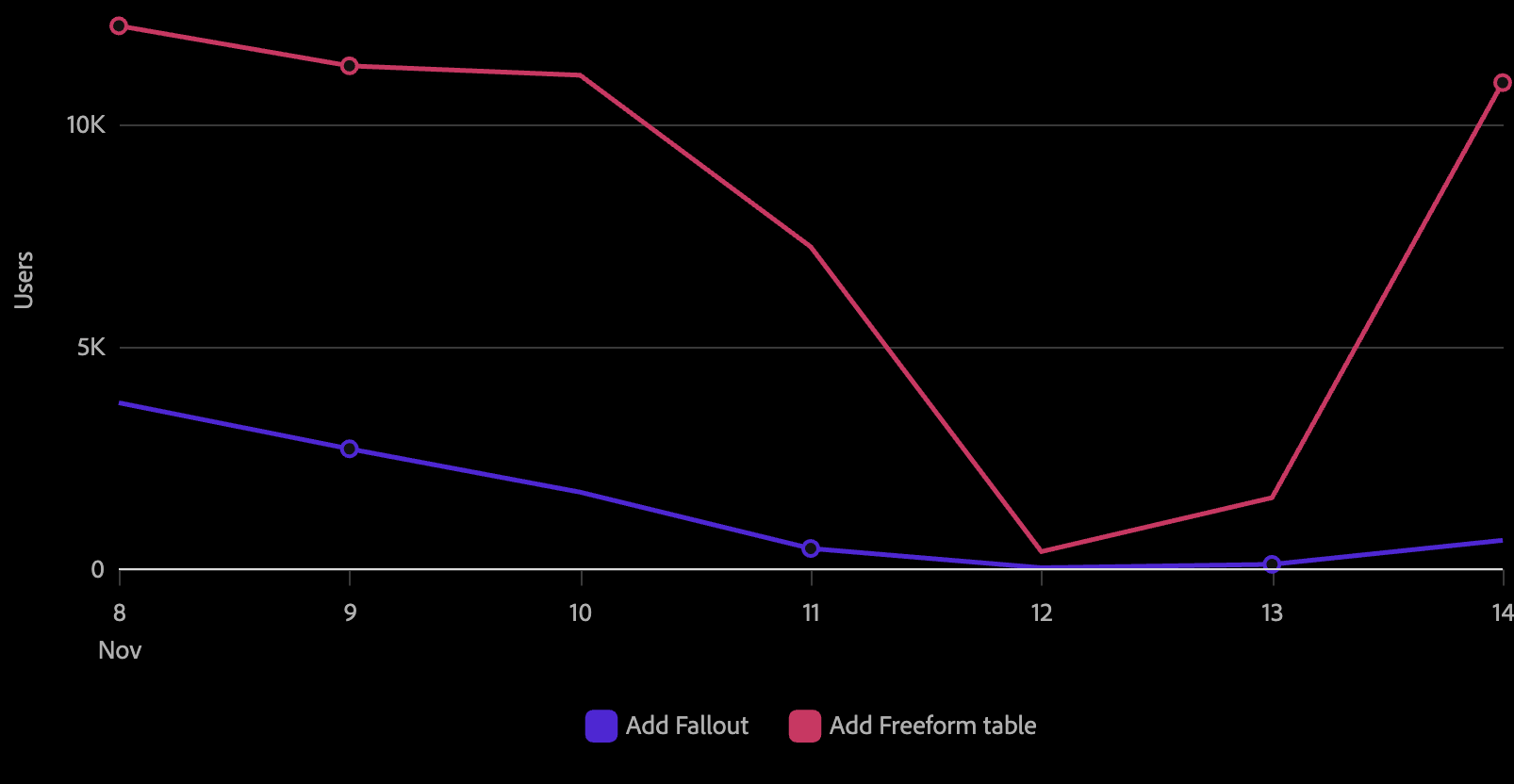

2. Static points — use the staticPoint prop to mark specific data points as always visible. Set staticPoint to the key in your data whose value is true for the data points you want to pin.

// data: [{ datetime: ..., value: 10, highlight: true }, ...]
<Line color="series" staticPoint="highlight" />

S2 selection and hover states (stroke ring, opacity fading of other series) are handled automatically by the S2 spec builder and follow the Spectrum 2 visual spec.

---

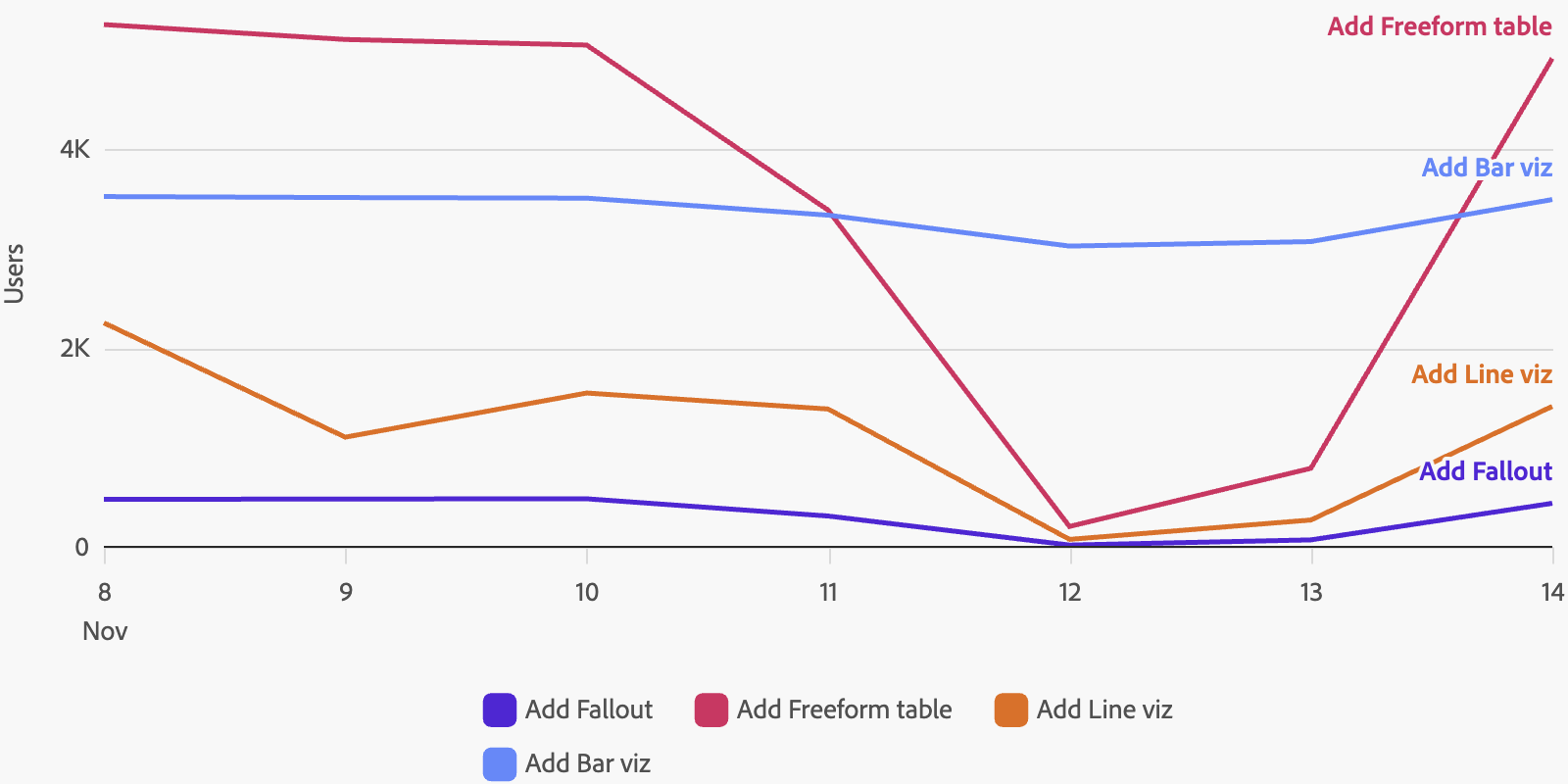

Line direct labels (LineDirectLabel)

The LineDirectLabel component is an S2-exclusive child of Line. It places an inline text label at the end of each line series by default, making multi-series charts readable without requiring a separate legend. Use the position prop to move labels to the start instead.

<Chart data={data}>
  <Axis position="bottom" labelFormat="time" ticks baseline />
  <Axis position="left" grid />
  <Line color="series">
    <LineDirectLabel />
  </Line>
</Chart>

Labels are automatically positioned to avoid overlap. When two series end at similar values, the labels are offset vertically.

Showing different values

{/* Show the series name instead of the last value */}
<LineDirectLabel value="series" />

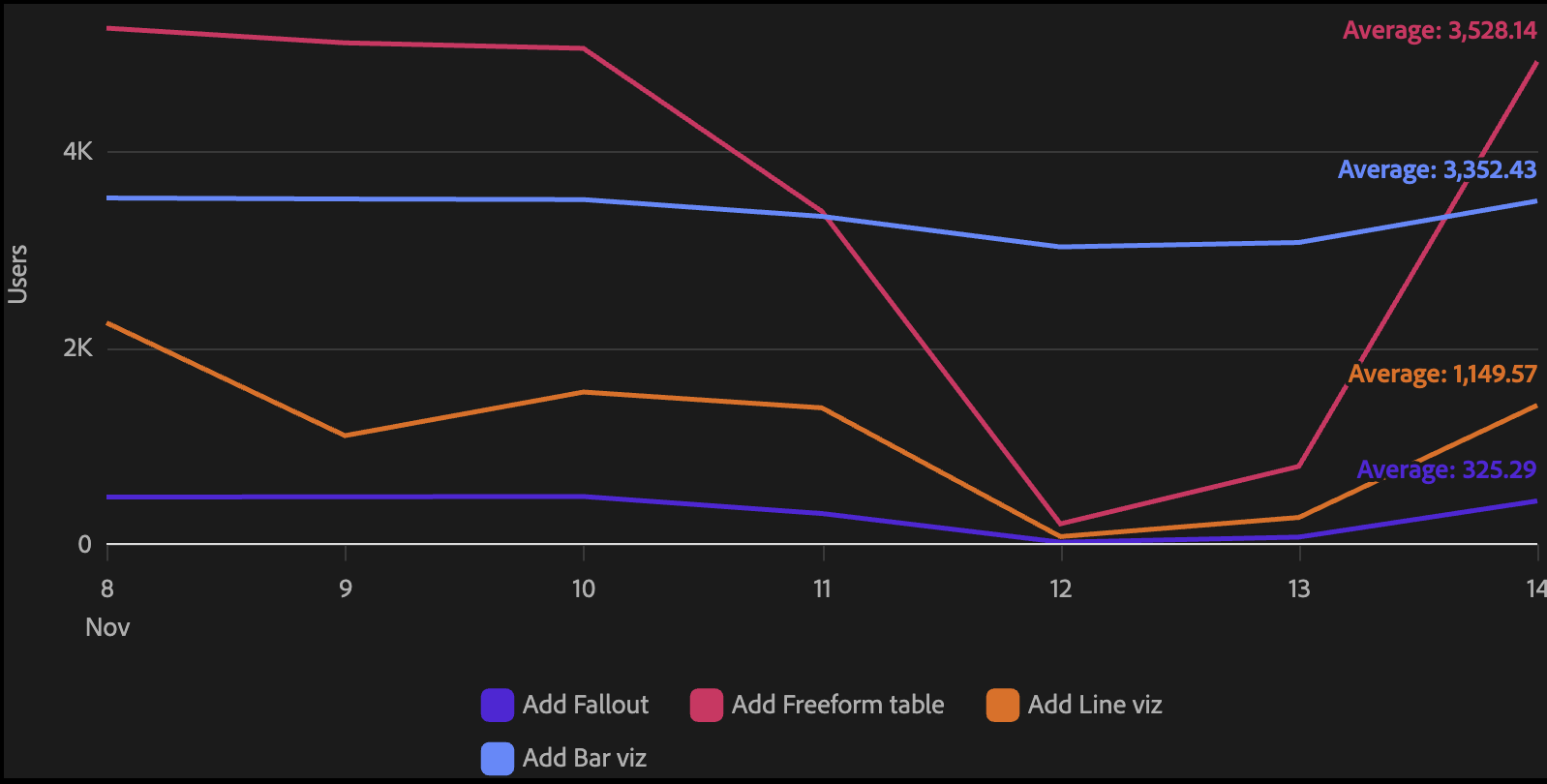

{/* Show the average value */}

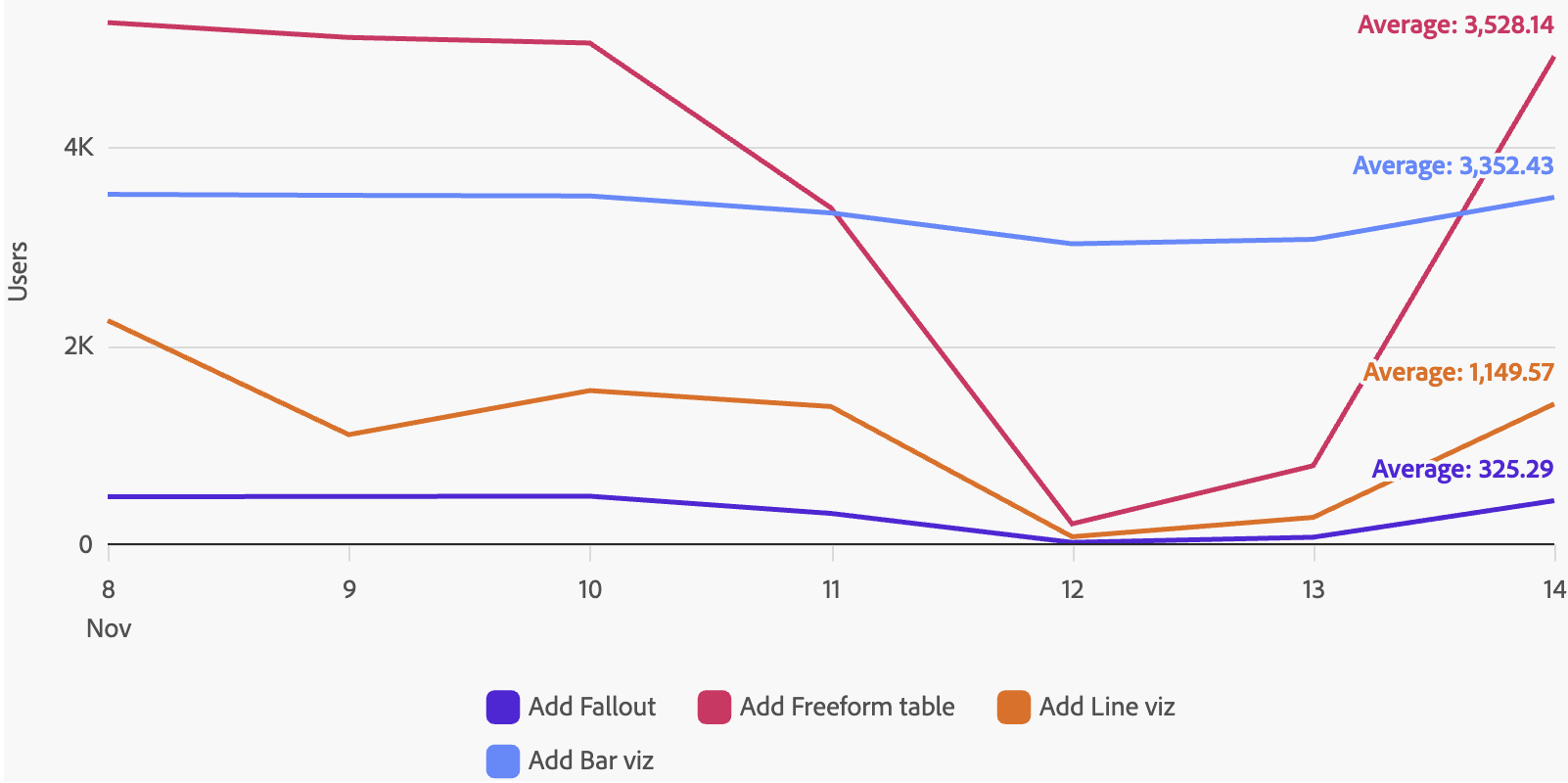

<LineDirectLabel value="average" />

{/* Place the label at the start of the line */}
<LineDirectLabel position="start" />

{/* Add a prefix and custom number format */}
<LineDirectLabel prefix="Avg:" value="average" format=".1f" />

Excluding series

Use excludeSeries to prevent labels from appearing on specific series:

<LineDirectLabel excludeSeries={['Other', 'Unknown']} />

LineDirectLabel props

name	type	default	description
value	'last' | 'average' | 'series'	'last'	What to display as the label text. 'last': the value at the last (or first, if position="start") data point. 'average': the mean value across all data points in the series. 'series': the series name (the value of the color field).
position	'start' | 'end'	'end'	Where to place the label. 'end' places it at the right edge of the chart; 'start' places it at the left edge.
format	string	',.2~f'	A d3-format string controlling how numeric values are displayed. Has no effect when value="series".
prefix	string	–	Text prepended to the label value, separated by a space.
excludeSeries	string[]	[]	Series names that should not receive a label.

---

Line props (S2)

Not all base Line props are supported

The S2 Line component does not yet support onMouseOver, onMouseOut, MetricRange, Trendline, or LinePointAnnotation. LinePointAnnotation is replaced by LineDirectLabel.

name	type	default	description
children	ChartTooltip | ChartPopover | LineDirectLabel	–	Optional child components for tooltips, popovers, and inline direct labels.
color	string | {value: string}	'categorical-100'	Key in the data used to map each series to a color, or a fixed color value object.
dimension	string	'datetime'	Key in the data that the metric is trended against (x-axis).
dualMetricAxis	boolean	–	When true, the last series uses a secondary y-axis with an independent scale.
gradient	boolean	–	S2 only. When true, renders a gradient fill beneath the line that fades from the line color to transparent.
interactionMode	'nearest' | 'item'	'nearest'	Controls which point is highlighted when the user hovers over the chart area.
interpolate	'basis' | 'cardinal' | 'catmull-rom' | 'linear' | 'monotone' | 'natural' | 'step' | 'step-after' | 'step-before'	–	S2 only. The curve interpolation method used to draw the line between data points.
lineType	string | {value: LineType | number[]}	{value: 'solid'}	Key in the data for line type faceting, or a fixed line type value.
metric	string	'value'	Key in the data used for the y-axis value.
metricAxis	string	–	Name of the axis the metric is plotted against. Used for dual-axis layouts.
name	string	'line0'	Name of the line component. Useful when referencing a specific line programmatically.
onClick	(datum: Datum) => void	–	Callback fired when a point or section of the line is clicked.
onContextMenu	(event: MouseEvent, datum: Datum) => void	–	Callback fired on right-click. Use this to show a custom context menu anchored to the clicked point.
opacity	number | string	–	Fixed opacity value or key in the data for opacity faceting.
padding	number	–	Chart area padding. A ratio (0–1) for categorical scales or a pixel value for continuous scales.
scaleType	'linear' | 'time' | 'point'	'time'	The scale type for the x-axis dimension.
staticPoint	string	–	Key in the data whose truthy value causes a visible point to be drawn at that data item.

---

Reference lines (S2)

The ReferenceLine component is a child of Axis that draws a vertical or horizontal reference line at a specified value. It is available in the S2 package and styled to the Spectrum 2 visual spec.

import { Chart, Axis, Line } from '@spectrum-charts/react-spectrum-charts-s2';

<Chart data={data}>
  <Axis position="bottom" labelFormat="time" ticks baseline>
    <ReferenceLine value={1706745600000} label="Launch" />
  </Axis>
  <Axis position="left" grid />
  <Line color="series" />
</Chart>

The reference line is drawn on the axis it is nested inside. Use a bottom/top axis child for vertical reference lines (marking a point in time or a categorical value), and a left/right axis child for horizontal reference lines (marking a threshold value).

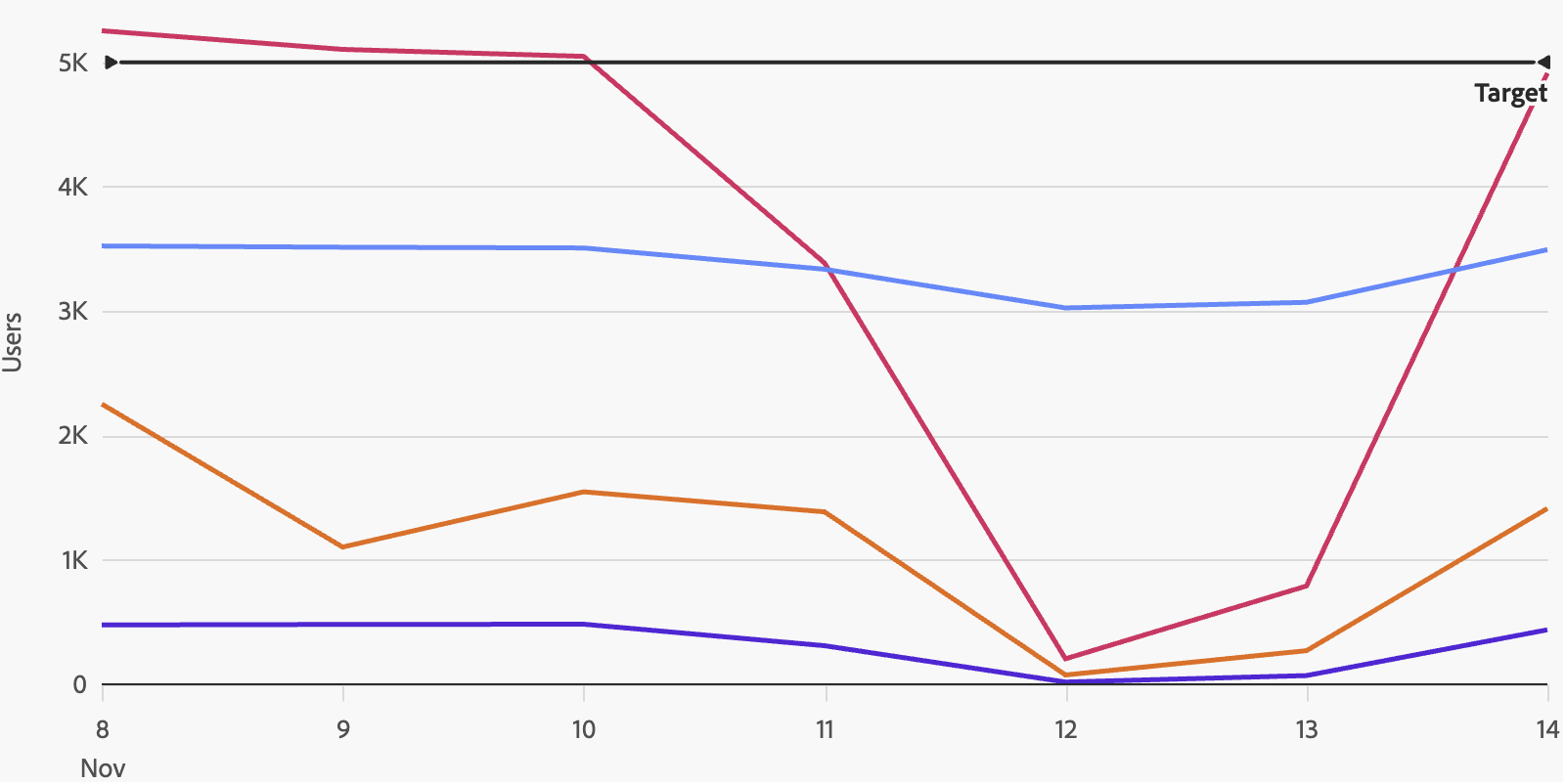

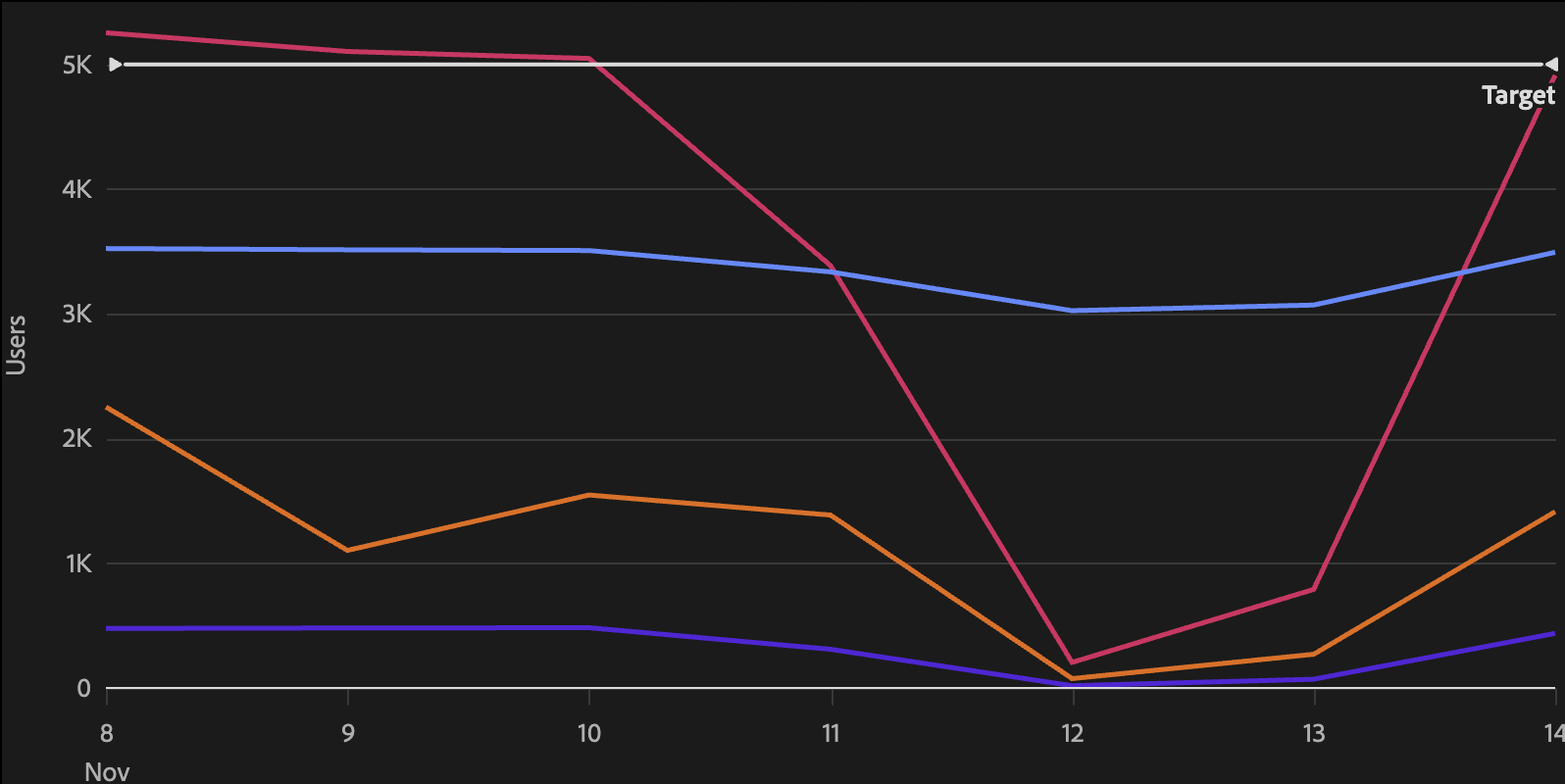

Reference line with label

<Axis position="left" grid>
  <ReferenceLine value={1000} label="Target" />
</Axis>

Positioning on bar charts

On bar charts with categorical axes, the position prop controls whether the reference line is positioned before, centered on, or after the specified value:

<Axis position="bottom">
  <ReferenceLine value="Q3" position="before" label="Q3 Start" />
</Axis>

ReferenceLine props

name	type	default	description
value *	number | string	–	The value on the axis at which to draw the reference line. For time axes, provide epoch milliseconds. For categorical axes, provide the category value.
label	string	–	Optional text label rendered alongside the reference line.
position	'before' | 'after' | 'center'	'center'	Controls where the line is drawn relative to the value. Only relevant for bar charts with categorical axes.

* required
