React Server Components (S2)

"RSC" below means React Server Components. This codebase's own Rsc-prefixed naming (RscChart, rscToSbAdapter) means "React Spectrum Charts" — unrelated.

Charts render through vega-embed, which mounts a live Vega View to a real DOM node and drives it with browser events — there's no server-side equivalent that preserves interactivity. And any interactive callback (onClick, a ChartPopover render-prop) is arbitrary code the consumer writes, which only ever makes sense running in the browser where the click happens. So the chart itself — marks, interactivity, popovers — stays in a Client Component, unchanged from how you'd use this library without RSC at all. The only thing that moves to the server is fetching the data.

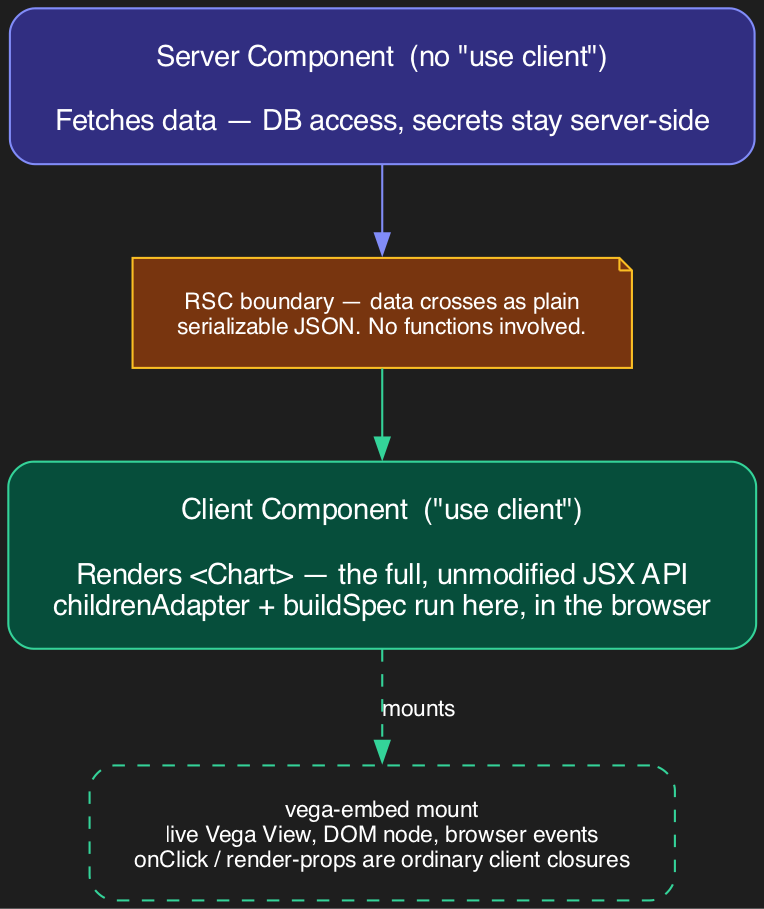

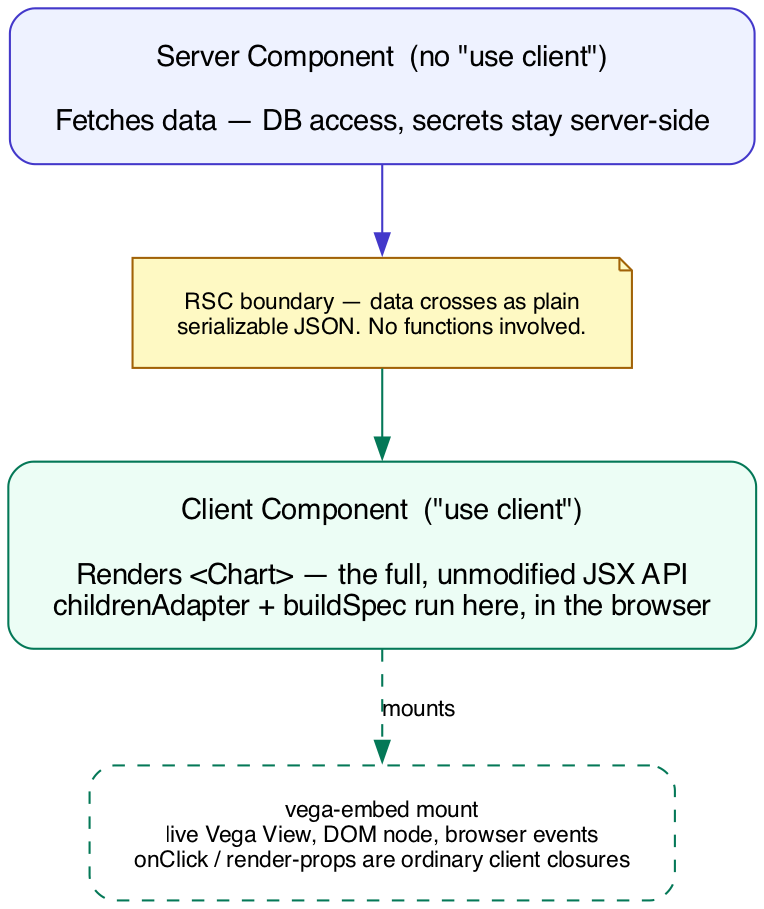

RSC rendering flow light RSC rendering flow dark

Pattern

Server Component — fetch data, nothing else:

// app/page.tsx
import { Suspense } from 'react';
import { ChartSkeleton } from '@/components/ChartSkeleton';
import { getMockChartData } from '@/lib/mockData';
import { DynamicChartClient } from './DynamicChartClient';

export const dynamic = 'force-dynamic';

async function ChartSection() {
  const data = await getMockChartData();
  return <DynamicChartClient data={data} />;
}

export default function Page() {
  return (
    <Suspense fallback={<ChartSkeleton />}>
      <ChartSection />
    </Suspense>
  );
}

Dynamic wrapper — optional, defers the chart bundle out of the initial route chunk:

// app/DynamicChartClient.tsx
'use client';
import dynamic from 'next/dynamic';

export const DynamicChartClient = dynamic(() => import('./ChartClient').then((m) => m.ChartClient));

Client Component — the chart, full API, real callbacks:

// app/ChartClient.tsx
'use client';
import { Axis, Chart, ChartPopover, Legend, Line } from '@spectrum-charts/react-spectrum-charts-s2';
import { ChartDatum } from '@/lib/mockData';

export function ChartClient({ data }: { data: ChartDatum[] }) {
  return (
    <Chart data={data}>
      <Axis position="bottom" labelFormat="time" baseline />
      <Axis position="left" grid />
      <Line color="series" scaleType="time" dimension="datetime" metric="value">
        <ChartPopover>{(datum, close) => <MyPopoverContent datum={datum} onClose={close} />}</ChartPopover>
      </Line>
      <Legend highlight />
    </Chart>
  );
}

data is the only thing crossing the Server→Client boundary, as plain JSON. Everything else — spec building, mark rendering, onClick, popovers, legend interactions — runs client-side, unchanged.
